12 inch spoke motor
Share to：

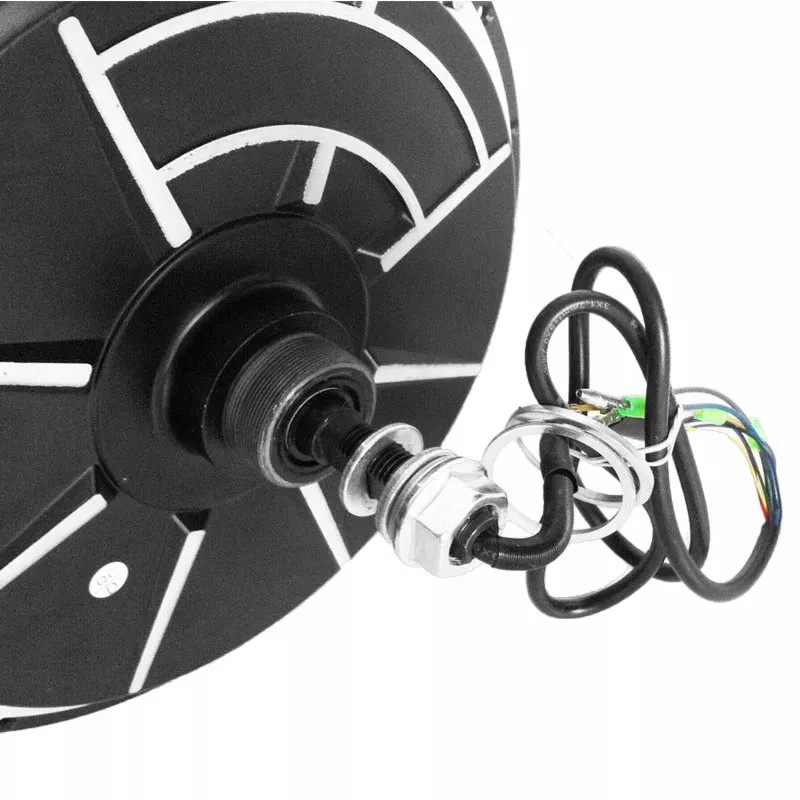

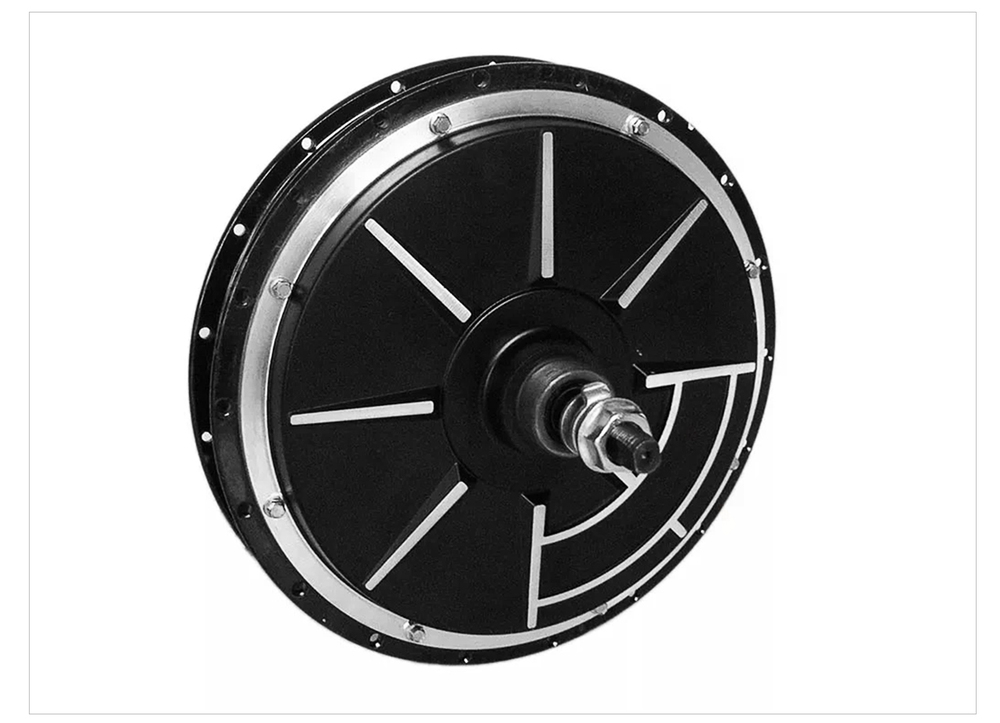

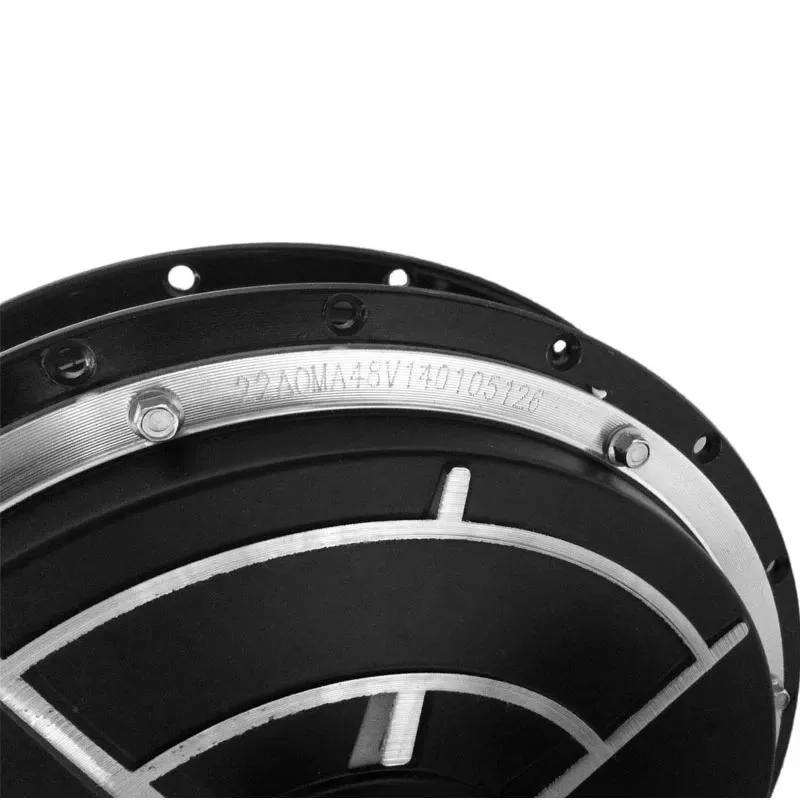

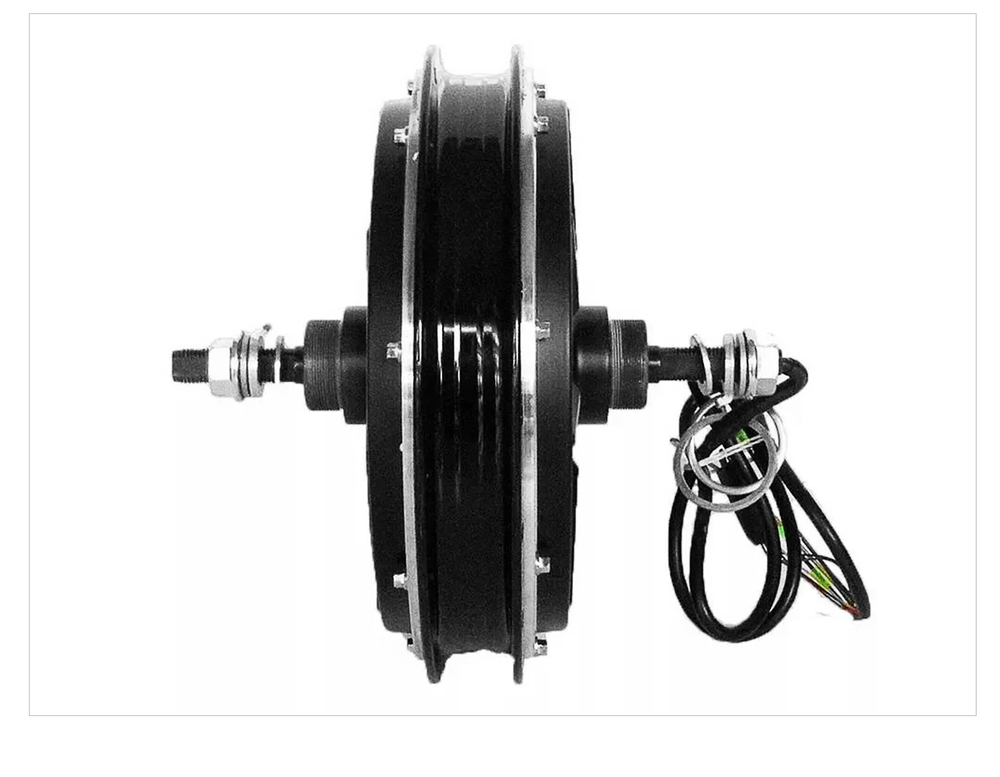

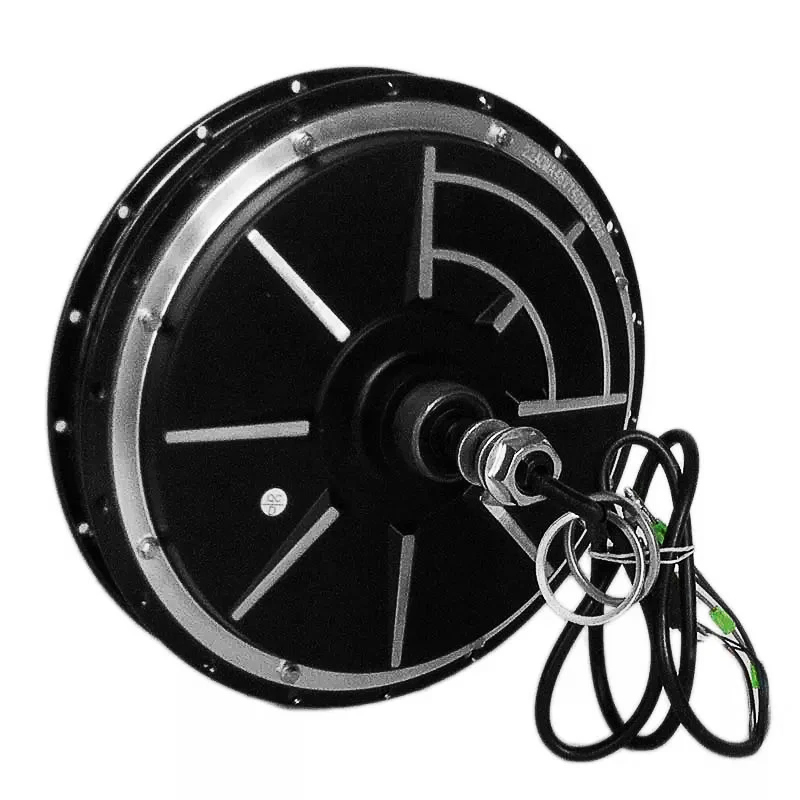

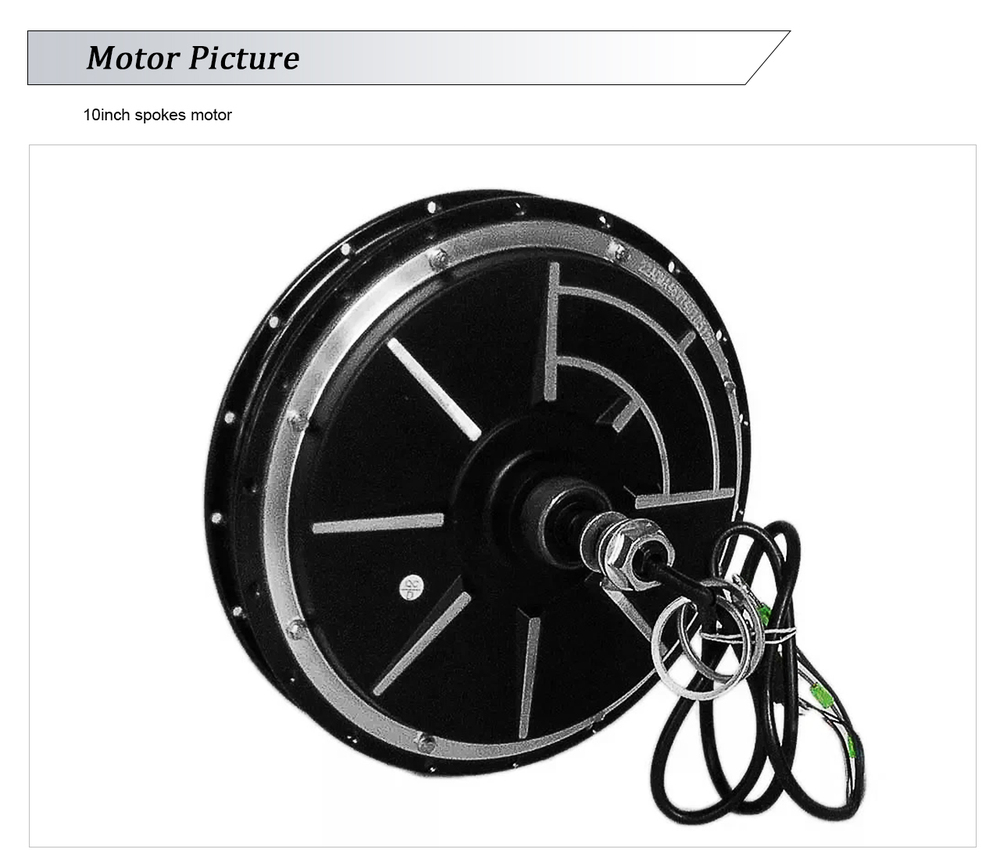

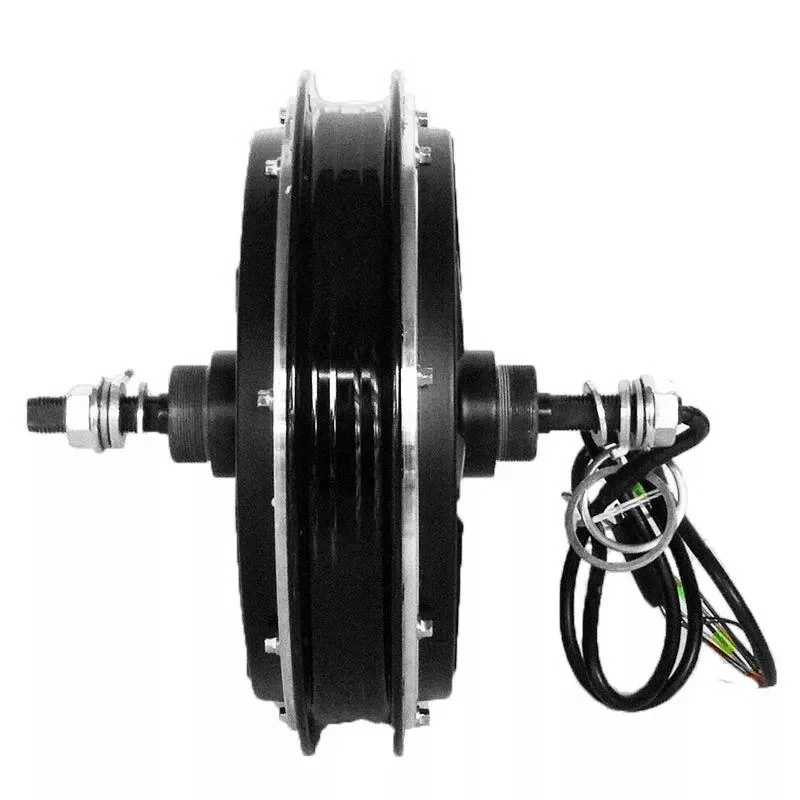

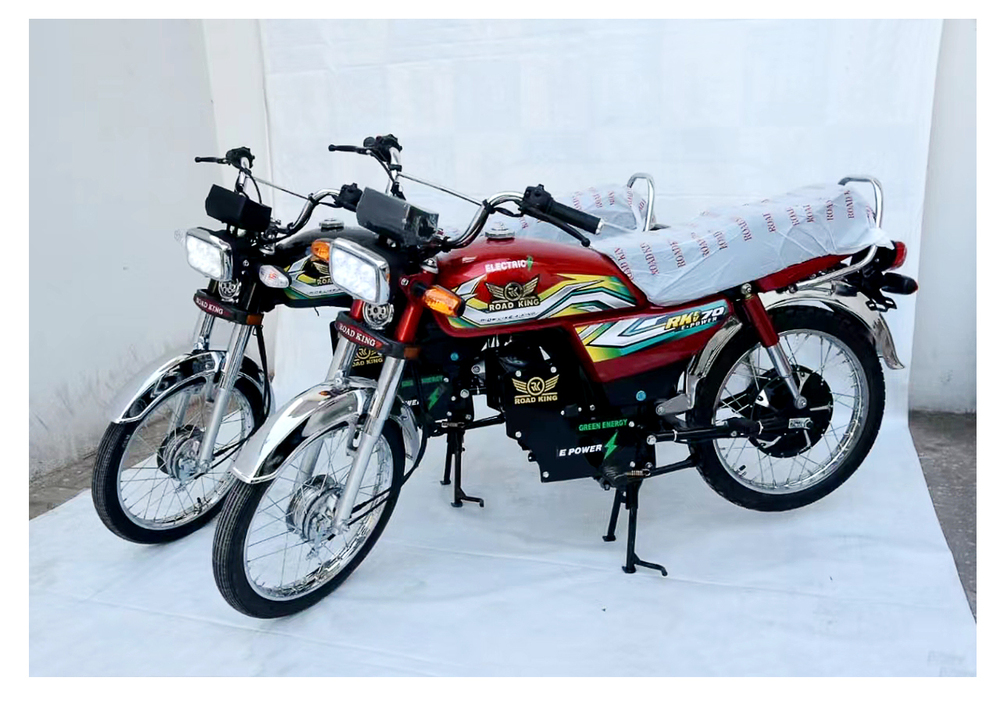

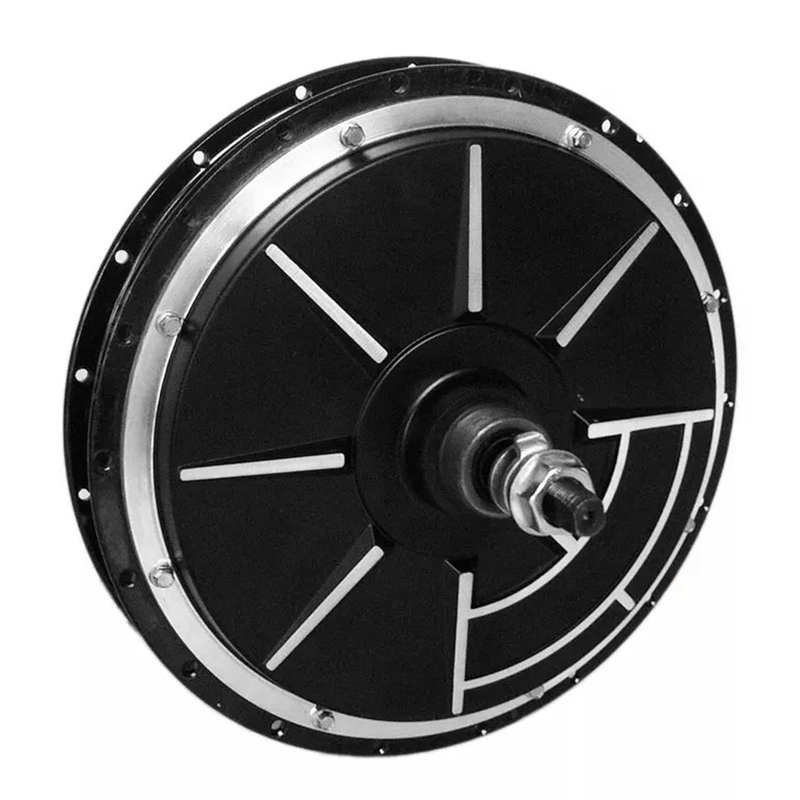

10 inch 48V-84V Spoke Motor For Electric Motorcycle


Wheel Diameter： 10 inches
Brakes： Drum brake or Disc Brake
Voltage： 48V-84V
Power： 1000W-3000W
No load speed： 650rpm
Maximum speed： 30km/h-70km/h
Inquiry
Product details


Motor TypeBrushless Direct Current Motor(BLDC Motor)

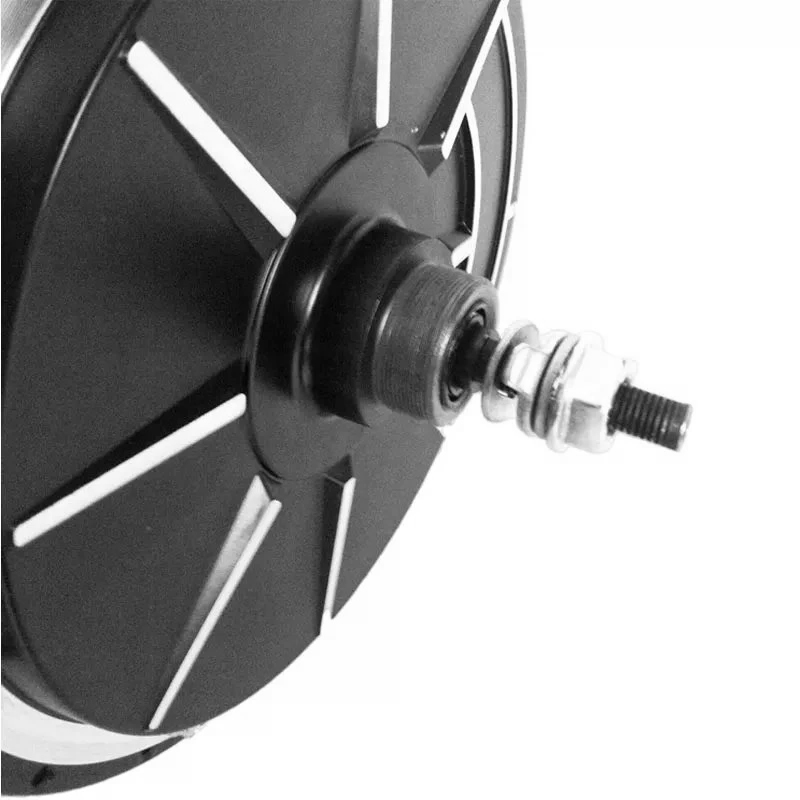

Axle Configuration14-16mm
Wheel Rim 20 inch 22 inch 24 inch 26 inch
Rated Speed30-70km/h
Voltage    48V/60V/72V/84V
Magnet Height24-50mm
RPM400-650
Brake System   Ancient brake/Disc brake/up brake
Hall Sensors3
Hall Sensor Phasing120°
Number of motor phases   3
Efficiency   ≥90%
Rated Out Power350w-3000W
Number of Pole Pairs30
Cross Section of Phase Wire 1.5 -5square
Waterproof GradeIP67
Color   Black
Diameter230mm
Rim width   40mm
Open file   170-220mm

Custom order Can be customized according to customer requirements
